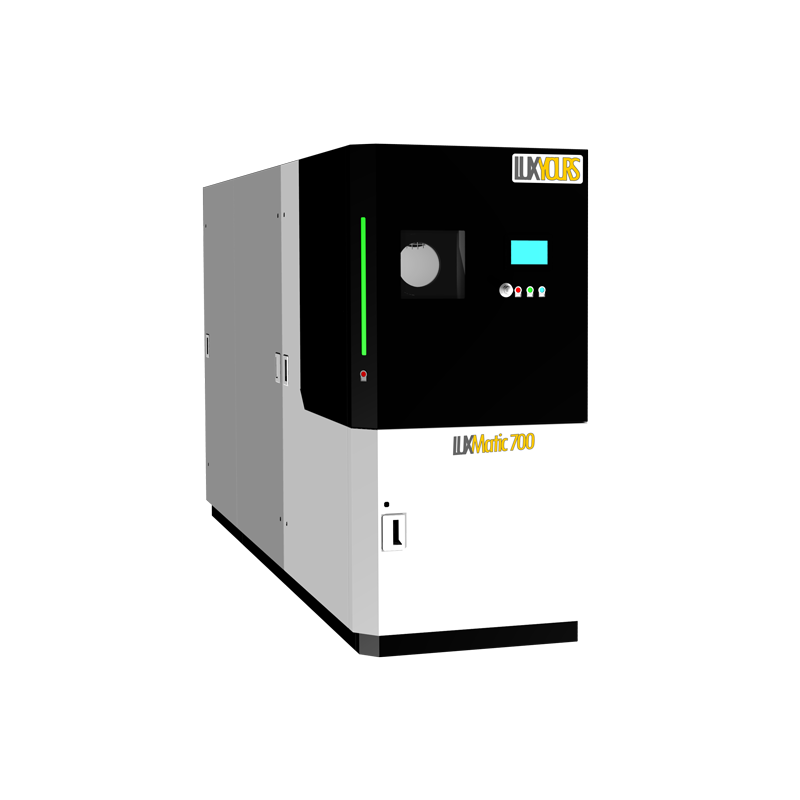

LUXMatic 700

The LUXMatic 700 is a unique machine, which provides our proprietary Iterative Flux Smoothing (IFS) process. The IFS allows to smoothen also the most filigree parts and at the same time best brilliance of the gained results. The IFS helps to aviod ugly material displacing drops and allows for forced flow though internal channels or assured smoothing of cavities.

The LUXMatic 700 consumes acid to create a controlled chemical vapor, which (after multiple utilizations) gets neutralized with a base to biodegradable salt and water, which can get disposed of down the drain.

Coming with an industrial controller the LUXMatic 700 is easy to operate and a safe production machine for smoothing big parts and big quantities with best results.

DETAILS & SUPPORT/

  • Big processing chamber

  • Ecological

  • Fast

  • Safe

  • Iterative flux vapor smoothing

  • Internal cavities smoothing

  • External faces smoothing

  • Industrie 4.0 ready

  • Exhaust air purifyer

Max. part size [mm] 700x500x500
Machine footprint [mm] 955x1950x3300
Min. processing time down to  5 min.
Processing time
(including evaporation time)
65 min.
Chamber flushing time 3 sec
Chamber emptying time 3 sec
Steam reservoir 260 liter
Installed heating power 7,4 KW
Touch-screen operation yes
CE certified yes

Installation

LuxYours will take care of the installation of the LUXMatic 700 and hand over a fully functional and calibrated machine.

We will accompany you in unpacking and setting up the machine, which will be delivered in two parts.
After the complete installation, we will carry out tests with the LUXMatic 700 to ensure correct and safe operation.

Training

Chemical smoothing with the LUXMatic 700 has to be learned. LuxYours offers a 3-day training course for operating the machine.
This includes the operation of the machine, control and adjustment of the components, which should be done by the customer himself, as well as tips and tricks for the optimal treatment of the parts to be smoothed.

Maintenance

To ensure the safety of the LUXMatic 700, an annual inspection of the machine is required.
Wearing parts are replaced and the correct functioning of all safety devices is tested.

In the event of a technical defect in the LUXMatic, we will repair the machine and then hand it over to you as a safe machine in your production.

 LuxFlux PA

The LuxFlux PA is the acid composition defined by us, which is used by the LUXMatic 700 for the smoothing of polyamides and TPUs. The LuxFlux PA is supplied in 10 litre canisters. Please refer to the safety data sheet for information on correct storage and handling. For safety reasons, LUXMatic 700 checks the supplied substances.

The LuxFlux PA is a biological substance that is completely harmless in micro quantities with regard to contact with food or skin. Should any of it be ingested, it will be metabolized by the body.

 NoFlux

The NoFlux is required by the LUXMatic 700 to neutralize the used LuxFlux PA after use. The reaction of the NoFlux with the LuxFlux PA leads to the formation of salts and water. This salty and PH-neutral water can be discharged into the local sewage system.
